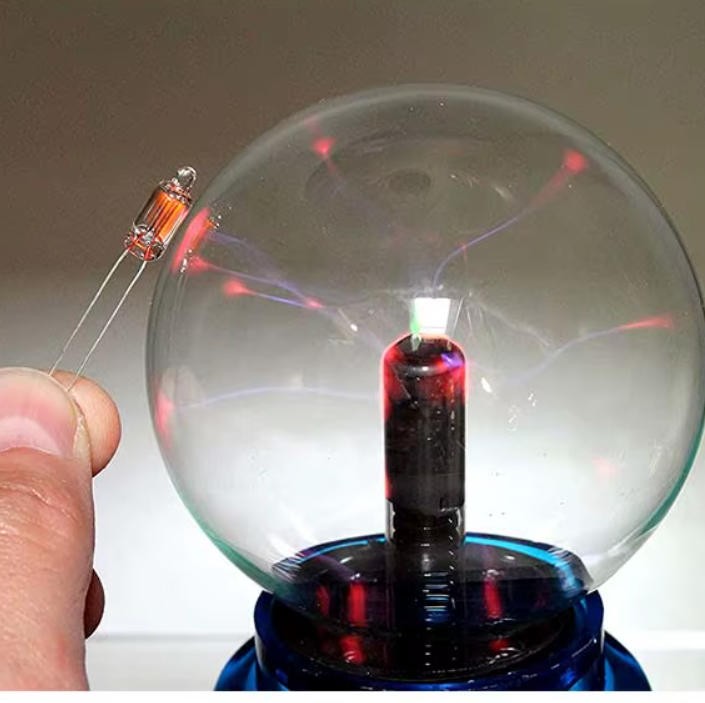

F3 NE2 Red Light Small Neon Bulb Lamp

Pioneering Small light bulb manufacturer since 2006.
The leads are made from a special material known as dumet which is a low resistance material consisting of a copper sheath around a nickel iron core constructed so that its expansion coefficient is the same as that of the glass used for the bulb.

wire ends, 110/220V, orange, clear cover Incandescent Miniature Automotive Light Bulb transparent miniature neon bulb Neon lamp

Neon Gloeilamp, draadeinden, 110/220V, oranje, heldere behuizing

Product Description:

ITEM: NE-2 3*10MM

Voltage: 3V / 6V / 12V / 24V
Watt: 3W

Base: PIN

Glass Color: Clear

Glass Shape: tube

Lumen: 280LM

Beam angle:  120°

Light Color: Red

Material: Glass

Size: 3*30mm

Lifespan: 25,000Hrs

Special Feature: Custom Manufacturing

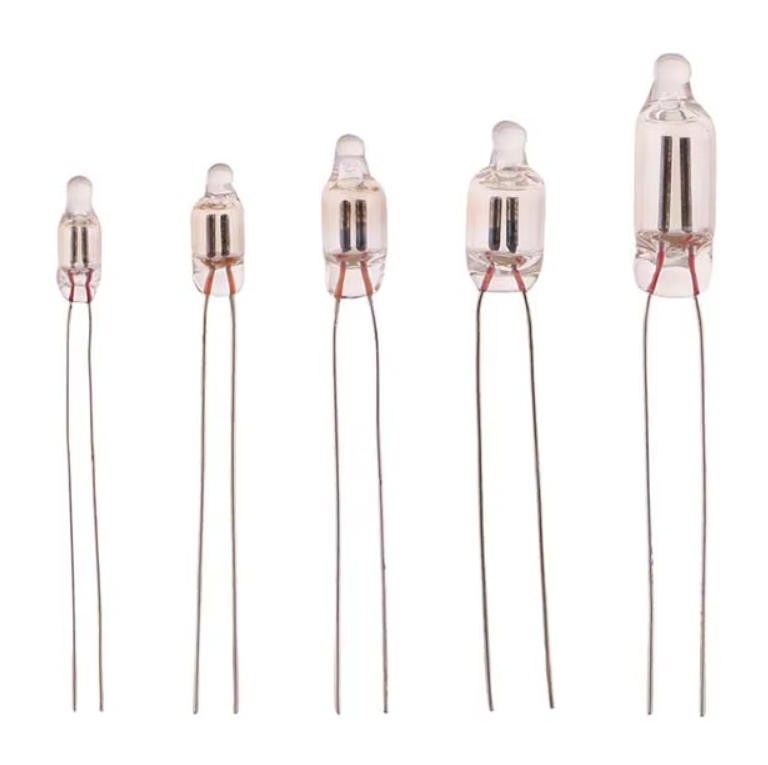

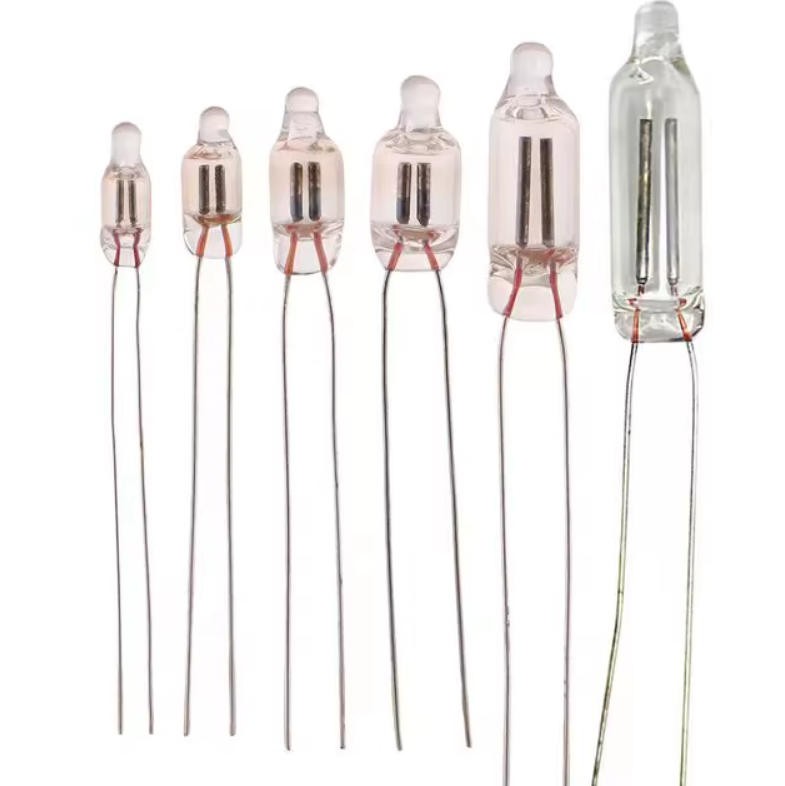

Spec.Int'l ModelDia. ϕ (mm)Length L
(mm) MAX
Lead Wire Dia. ϕ (mm)Lead Wire Length L (mm) MAXVoltage A.C. (V)Breakdown Voltage D.C. (V)Ref. Operating Current (mA)Series Resistor 1/4W 110-120V(AC)Series Resistor 1/4W 220-250V(AC)Avg. Life (h)
ϕ3∗10NE-2UH3 (+0.2, -0.2)10 (+0, -1.5)0.3530 ± 195135315K47K>15000
ϕ4∗10NE-2UH4 (+0.1, -0.3)10 (+0, -1.5)0.3530 ± 195135315K47K>15000
ϕ5∗13NE-2UH5 (+0.1, -0.3)13 (+0, -2)0.430 ± 195135315K47K>15000
ϕ5∗16NE-2UH5 (+0.1, -0.3)16 (+0.5, -1)0.430 ± 195135315K47K>15000
ϕ6∗13NE-2UH6 (+0.1, -0.3)13 (+0, -2)0.430 ± 195135412K39K>15000
ϕ6∗16NE-2UH6 (+0.1, -0.3)16 (+0.5,-1.5)0.430 ± 195135412K39K>15000
ϕ6∗18NE-2UH6 (+0.1, -0.3)18 (+0.5, -1.5)0.430 ± 195135412K39K>15000
ϕ6∗20NE-2UH6 (+0.1, -0.3)20 (+0.5, -1.5)0.430 ± 195135312K39K>15000
ϕ6∗22NE-2UH6 (+0.1, -0.3)22 (+0.5, -1.5)0.430 ± 195135412K39K>15000


Typical Applications:Widely used for status indication in:

  • Consumer Electronics: Power strips, wall switches, rice cookers, kettles.

  • Industrial: Control panels, pilot lights.

  • Tools: Voltage detectors, electrical safety tools.
