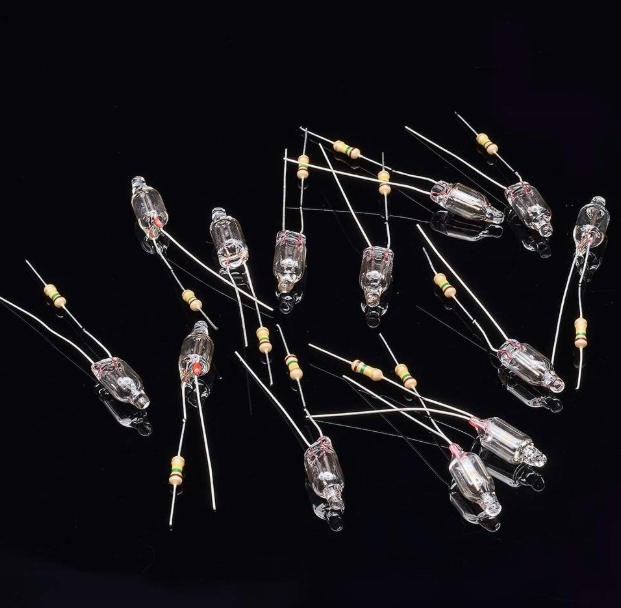

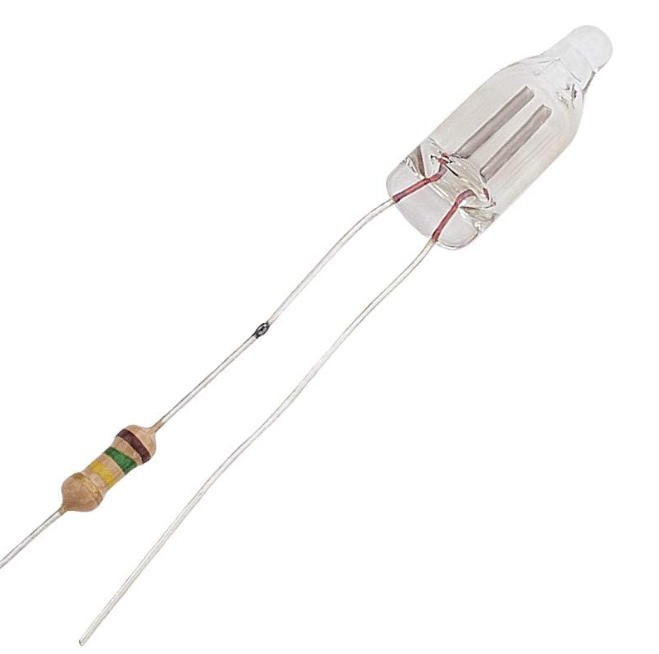

F6 Neon lightbulb Indicator Lamps with Resistor

Pioneering Small light bulb manufacturer since 2006.

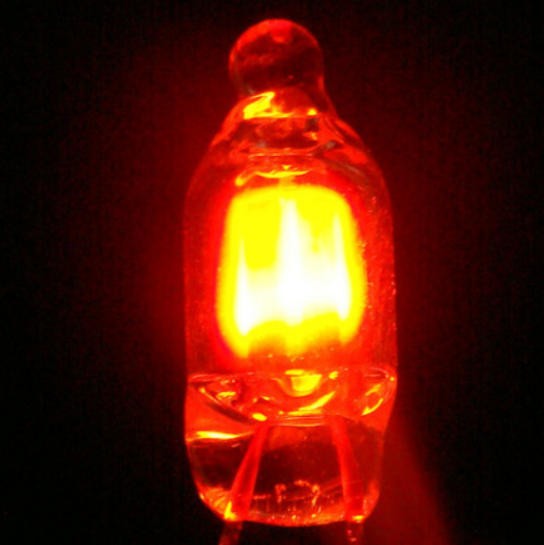

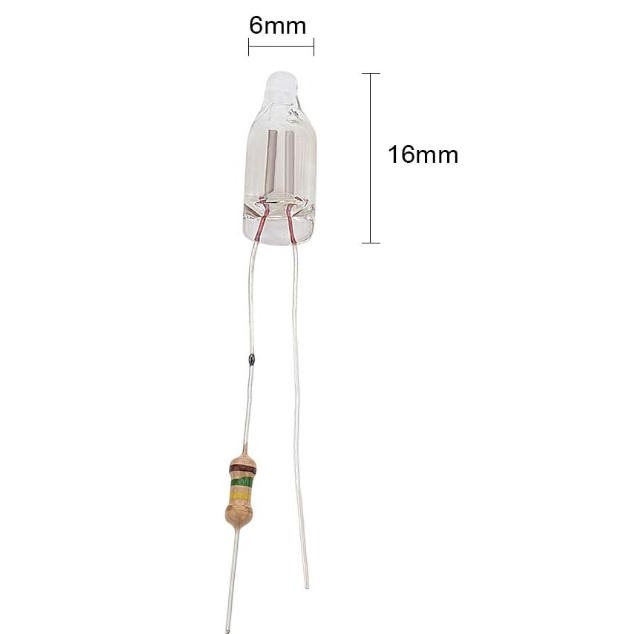

F6 6*16mm Resistor:150K Red Light
High Luminance: Superior brightness
Uniformity: Consistent light distribution across the glow zone.
Reliability: Long operational life with minimal brightness decay.
Physical Attributes: Compact, lightweight, and robust.
RoHS Compliant: Pb-free and hazardous substance free.
REACH Compliant: Meets SVHC requirements.
Used in the coffee pot,fans,rice cookers, electric iron,electric killer.

Product Description:
  • Technology: Cold Cathode (CCFL) process.

  • Gas Composition: Neon-Argon gas mixture.

  • Electrode Treatment: Specially treated for enhanced electron emission and longevity.


Spec.Int'l ModelDia. ϕ (mm)Length L
(mm) MAX
Lead Wire Dia. ϕ (mm)Lead Wire Length L (mm) MAXVoltage A.C. (V)Breakdown Voltage D.C. (V)Ref. Operating Current (mA)Series Resistor 1/4W 110-120V(AC)Series Resistor 1/4W 220-250V(AC)Avg. Life (h)
ϕ3∗10NE-2UH3 (+0.2, -0.2)10 (+0, -1.5)0.3530 ± 195135315K47K>15000
ϕ4∗10NE-2UH4 (+0.1, -0.3)10 (+0, -1.5)0.3530 ± 195135315K47K>15000
ϕ5∗13NE-2UH5 (+0.1, -0.3)13 (+0, -2)0.430 ± 195135315K47K>15000
ϕ5∗16NE-2UH5 (+0.1, -0.3)16 (+0.5, -1)0.430 ± 195135315K47K>15000
ϕ6∗13NE-2UH6 (+0.1, -0.3)13 (+0, -2)0.430 ± 195135412K39K>15000
ϕ6∗16NE-2UH6 (+0.1, -0.3)16 (+0.5,-1.5)0.430 ± 195135412K39K>15000
ϕ6∗18NE-2UH6 (+0.1, -0.3)18 (+0.5, -1.5)0.430 ± 195135412K39K>15000
ϕ6∗20NE-2UH6 (+0.1, -0.3)20 (+0.5, -1.5)0.430 ± 195135312K39K>15000
ϕ6∗22NE-2UH6 (+0.1, -0.3)22 (+0.5, -1.5)0.430 ± 195135412K39K>15000


Typical Applications:Widely used for status indication in:

  • Consumer Electronics: Power strips, wall switches, rice cookers, kettles.

  • Industrial: Control panels, pilot lights.

  • Tools: Voltage detectors, electrical safety tools.
